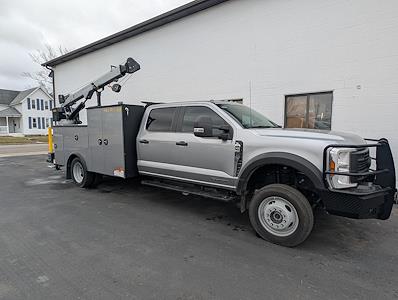

2024 Ford F-450 Crew Cab DRW 4x4 Palfinger Mechanics Body
Vehicle Notes
Read More…
Chassis Details
Vehicle Options
- 4.88 Axle Ratio
- GVWR: 16,500 lb Payload Package
- 50-State Emissions System
- Electronic Transfer Case
- Part-Time Four-Wheel Drive
- Towing Equipment -inc: Brake Controller and Trailer Sway Control
- Trailer Wiring Harness
- HD Shock Absorbers
- Front And Rear Anti-Roll Bars
- Firm Suspension
- Hydraulic Power-Assist Steering
- 40 Gal. Fuel Tank
- Single Stainless Steel Exhaust
- Dual Rear Wheels
- Auto Locking Hubs
- Front Suspension w/Coil Springs
- Solid Axle Rear Suspension w/Leaf Springs
- 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control
- Upfitter Switches
- Clearcoat Paint
- Black Fender Flares
- Black Side Windows Trim and Black Front Windshield Trim
- Variable Intermittent Wipers
- Aluminum Panels
- Front Splash Guards
- Cab Clearance Lights
- Perimeter/Approach Lights
- Fixed Antenna
- 2 LCD Monitors In The Front
- 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat
- FordPass Connect 5G Mobile Hotspot Internet Access
- Rear Cupholder
- Compass
- Cruise Control w/Steering Wheel Controls
- Illuminated Locking Glove Box
- Full Cloth Headliner
- Urethane Gear Shifter Material
- Fade-To-Off Interior Lighting
- Front And Rear Map Lights
- Delayed Accessory Power
- Driver Information Center
- Outside Temp Gauge
- Digital/Analog Appearance
- Securilock Anti-Theft Ignition (pats) Immobilizer
- Air Filtration
- Driveline Traction Control
- Side Impact Beams
- Dual Stage Driver And Passenger Seat-Mounted Side Airbags
- Pre-Collision Assist with Automatic Emergency Braking (AEB)
- Collision Mitigation-Front
- Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
- Safety Canopy System Curtain 1st And 2nd Row Airbags
- Dual Stage Driver And Passenger Front Airbags
- Rear Child Safety Locks
- View All
Body Details
PAL Pro 39 Features
The PAL Pro 39 is our new weight-optimized generation of bodies available in 9' and 11' configurations. In this development, we discovered new ways to reduce weight to create the lightest steel crane body in the industry without sacrificing durability.
Features:
Featuring new light-weight aluminum doors, the PAL Pro 39 offers you a more usable payload and reduced corrosion. Choose from various standard options to meet your service truck needs, including a headache rack, accessory mounting brackets, tail shelf and bumper options, and more.
PAL Pro 39 is manufactured using 12-gauge A-60 galvanneal steel and features a full-length torsion box understructure interlaced with tubular cross members. Combined with integrated outrigger housings, PAL Pro 39 effectively manages crane forces while preventing flexing and cracking.

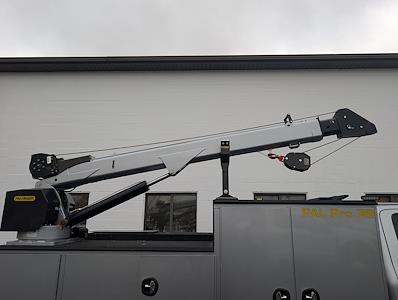

PAL Pro 39 features a 39,000 ft. lbs. crane reinforcement designed to accommodate PALFINGER PSC 3216, 4016, 4025, 5025, and 6025 service cranes.
PAL Pro 39 is designed to be the lightest steel crane body in the industry without sacrificing durability. The body can be mounted on a dual wheel chassis with a GVWR as low as 14,001 lbs., providing excellent flexibility for a wide range of applications. Threaded weldment options available from the factory make installing top mounted accessories easy. Boom rest, welder, compressor, EnPak, Air-n-Arc and AirPak mounts eliminate the need to drill holes in the body.
PAL Pro 39 features light-weight aluminum double panel doors that provide rigid performance with internal C-channel stiffeners adhered with structural adhesive. Interior compartments feature aluminum hinges and divider trays that are light-weight and corrosion resistant.
Interior compartments on the PAL Pro 39 are coated with Zolatone to resist damage commonly caused by tools, chains, and parts. Zolatone provides an additional layer of rust protection and as an added bonus, the coating is white in color and helps to brighten up the interior.
PAL Pro 39 features either a 12" or 21" deep work bench bumper designed to provide technicians with a useable work surface for field repairs, welding, and more. Each bumper features a 1/4" steel top plate and the 21" bumper adds a thru-compartment for internal storage of long tools and chains. All PAL Pro 39 bumpers come standard with a 2" receiver tube hitch rated to 16,000 lbs. towing capacity.
Standard Features:
- 44" Standard Compartment Heights with Raised Compartment Options
- 9' and 11' Standard Configurations
- Treadplate Cargo Floor, Load Space Walls and Compartment Tops
- Hybrid Torsion Box and Ladder Frame
- Palfinger Engineered Internal Gussets Prevents Body Cracking
- Full Length Channel Drip Rails
- Double Panel Doors with Internal C-channel Stiffeners, Adhered with Structural Adhesive
- Non-marring Boom Rest
- Workbench Featuring 12" or 21" Bumper, Receiver Hitch, 1/4" Steel Top Plate and Thru Compartment
- Linear Adjustable Front Mounts
- Aluminium Doors and Hinges
- Rubber Mounted LED Lights
- E-coat Primer
| Call For Pricing |
Pricing Details
Vehicle available NOW in Berne, IN.
Contact Moser Motor Sales for more info.
(260) 589-5056
